HLW24R-2C7LF

Amphenol FCI

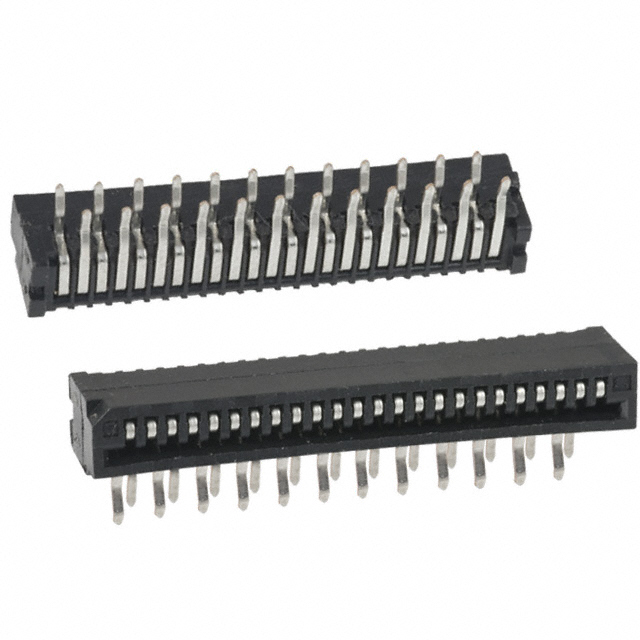

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HLW24R-2C7LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN FFC FPC TOP 24POS 1MM R/A
Datasheets:	HLW24R-2C7LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	415830 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 415830 pcs

Reference Price (In US Dollars)

1 pcs: $0.083

10 pcs: $0.078

25 pcs: $0.066

50 pcs: $0.058

100 pcs: $0.054

300 pcs: $0.048

500 pcs: $0.046

1000 pcs: $0.037

2500 pcs: $0.034

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.083

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HLW24R-2C7LF

Part Number	HLW24R-2C7LF	Manufacturer	Amphenol FCI
Description	CONN FFC FPC TOP 24POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	415830 pcs	Data sheet	HLW24R-2C7LF.pdf
Voltage Rating	100V	Termination	Kinked Pin
Series	HLW-R	Pitch	0.039" (1.00mm)
Packaging	Tray	Other Names	609-1838 HLW24R2C7LF
Operating Temperature	-55°C ~ 85°C	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Color	Black	Height Above Board	0.154" (3.90mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	24 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight or Tapered
Actuator Material	-	Actuator Color	-
