Amphenol FCI

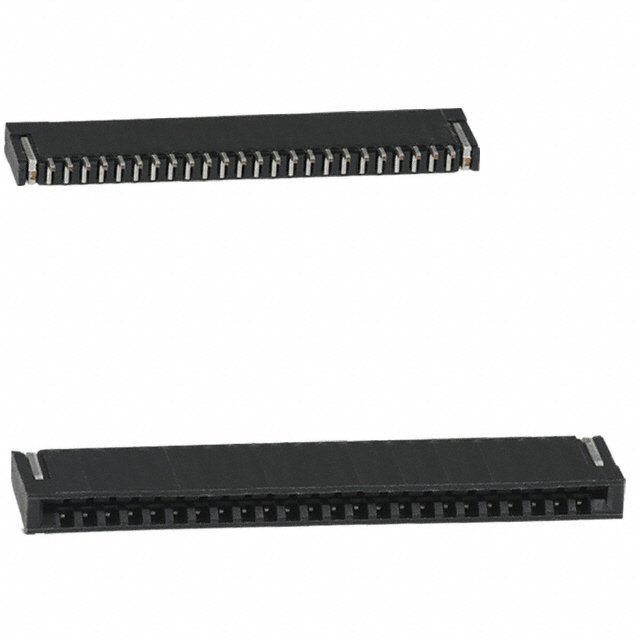

| Part Number | HFW24R-2STE1LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC TOP 24POS 1MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 154312 pcs | Data sheet | HFW24R-2STE1LF.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Series | HFW-R | Pitch | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Other Names | 609-1807-1 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 24 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Housing Color | Black | Height Above Board | 0.075" (1.90mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 24 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight or Tapered |
| Actuator Material | - | Actuator Color | - |
