Amphenol FCI

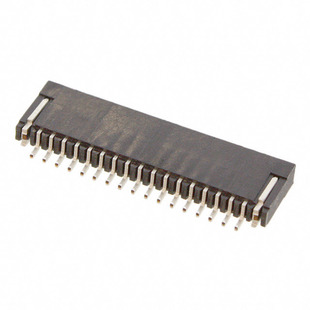

| Part Number | HFW17R-1STE1LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC BOTTOM 17POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 405554 pcs | Data sheet | HFW17R-1STE1LF.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Series | HFW-R | Pitch | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | 609-4400-2 HFW17R1STE1LF |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 17 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Housing Color | Black | Height Above Board | 0.075" (1.90mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 17 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight or Tapered |
| Actuator Material | - | Actuator Color | - |
