Amphenol Commercial Products

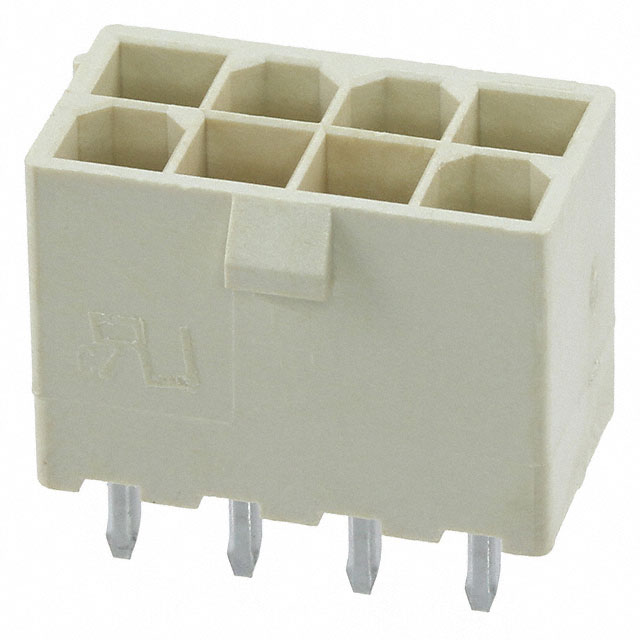

| Part Number | G874D081202CEU | Manufacturer | Amphenol Commercial Products |
|---|---|---|---|
| Description | CONN MINI POWER VERT 8PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80847 pcs | Data sheet | 1.G874D081202CEU.pdf2.G874D081202CEU.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Mini Power | Row Spacing - Mating | 0.165" (4.20mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tray |
| Overall Contact Length | - | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
