Amphenol FCI

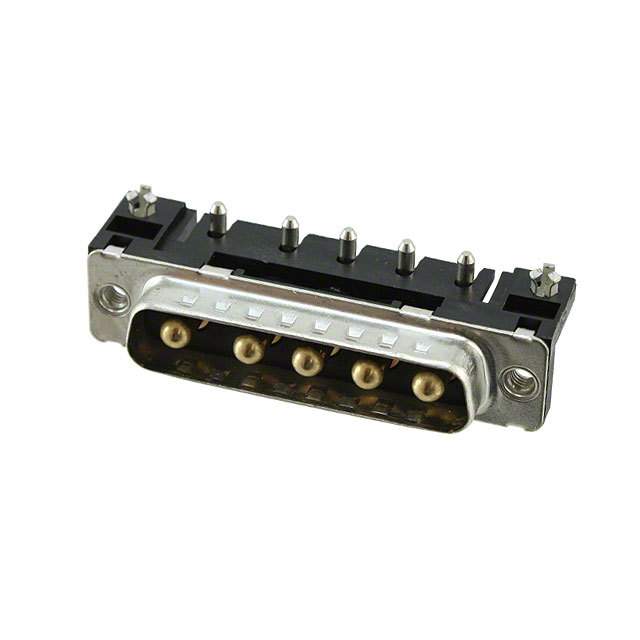

| Part Number | D5W5P36A6GL3BLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN D-SUB PLUG 5POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14091 pcs | Data sheet | D5W5P36A6GL3BLF.pdf |
| Wire Gauge | - | Voltage Rating | 300V |
| Termination | Solder | Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Shell Material, Finish | Steel, Tin Plated | Series | Delta D |
| Packaging | Tray | Other Names | 609-4407 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions | 5 (Power) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (M3) | Features | Board Lock, Grounding Indents, Mounting Brackets |
| Detailed Description | 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector | Current Rating | 30A |
| Contact Type | Power | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, Combo | Color | Black |
| Backset Spacing | 0.374" (9.50mm) |
