Amphenol FCI

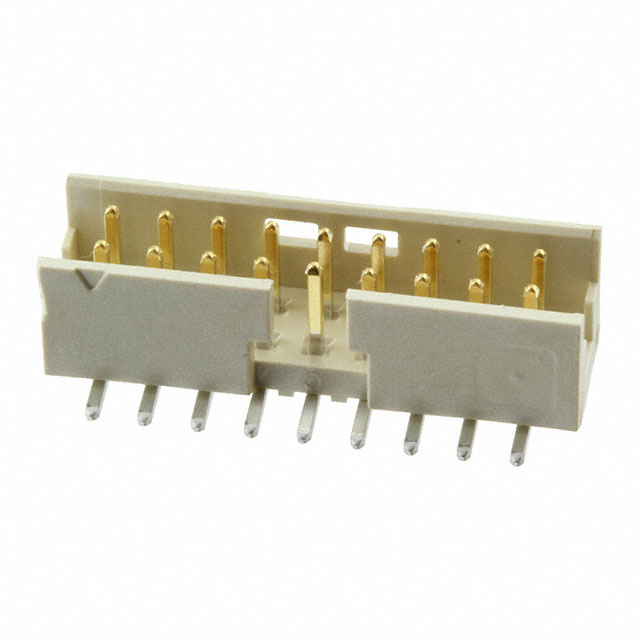

| Part Number | 98424-F52-18ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82226 pcs | Data sheet | 98424-F52-18ALF.pdf |
| Voltage Rating | 200V (AC/DC) | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Minitek® | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 609-5178-2 98424-F52-18ALF-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 18 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.244" (6.20mm) |
| Insulation Color | Cream | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount 18 position 0.079" (2.00mm) | Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
