Amphenol FCI

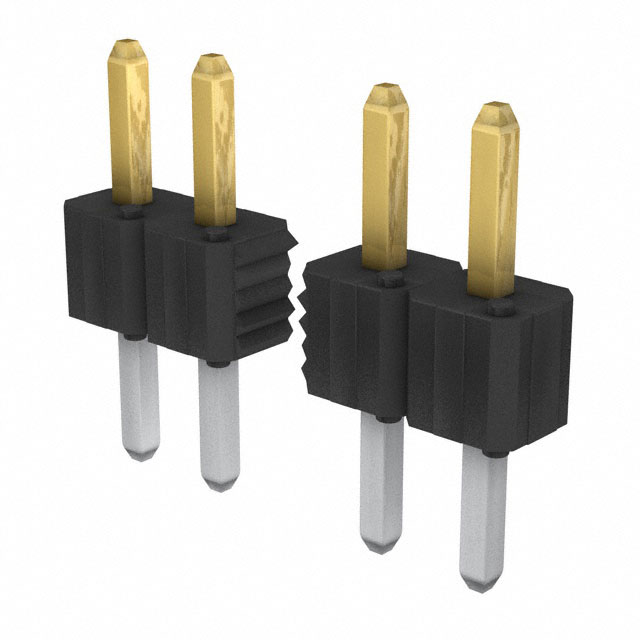

| Part Number | 94063-105HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 362810 pcs | Data sheet | 94063-105HLF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BERGSTIK® II | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.376" (9.55mm) | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 5 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
