Amphenol FCI

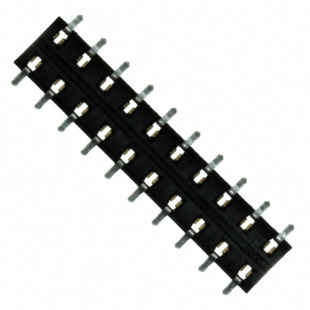

| Part Number | 91596-120LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RECEPT 20POS 2MM STR DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27556 pcs | Data sheet | 91596-120LF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board or Cable | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 609-2730 91596120LF |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.091" (2.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom Entry | Applications | - |
