Amphenol FCI

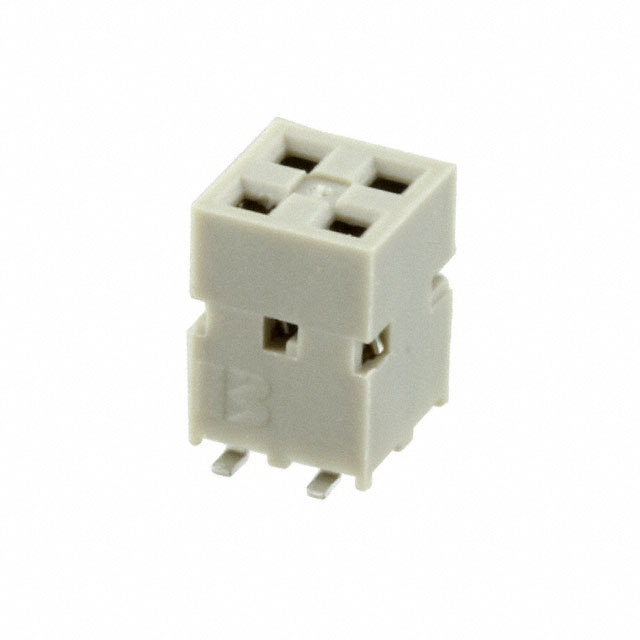

| Part Number | 89898-302ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 4POS .100 DL STR SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 167946 pcs | Data sheet | 89898-302ALF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Dubox™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 609-5153-2 89898-302ALF-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 10.81mm |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.275" (6.99mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | Automotive, General Purpose, Industrial, Telecommunications |
