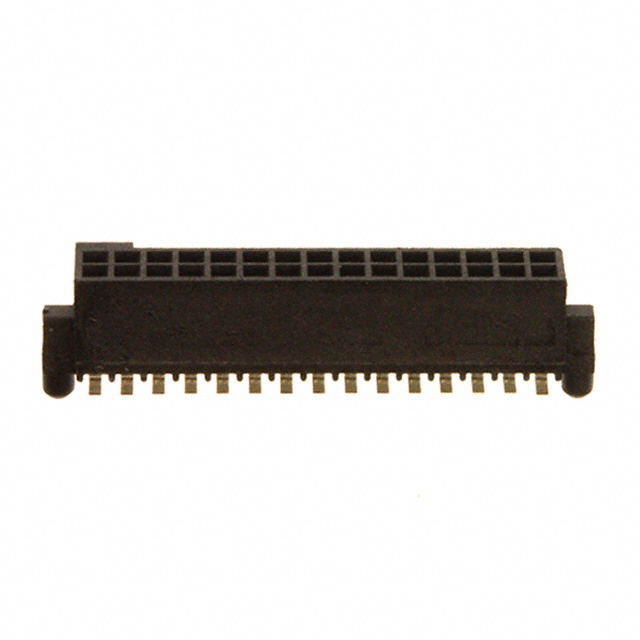

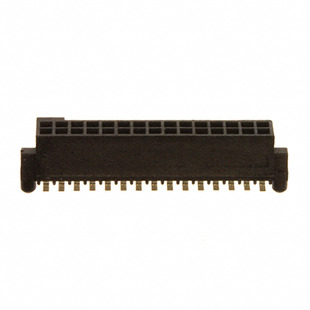

Amphenol FCI
| Part Number | 87024-615LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 30POS DL .050 VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29512 pcs | Data sheet | 87024-615LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Rib-Cage™ |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 609-1551 87024615LF |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.187" (4.75mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold or Gold, GXT™ | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Telecommunications |
