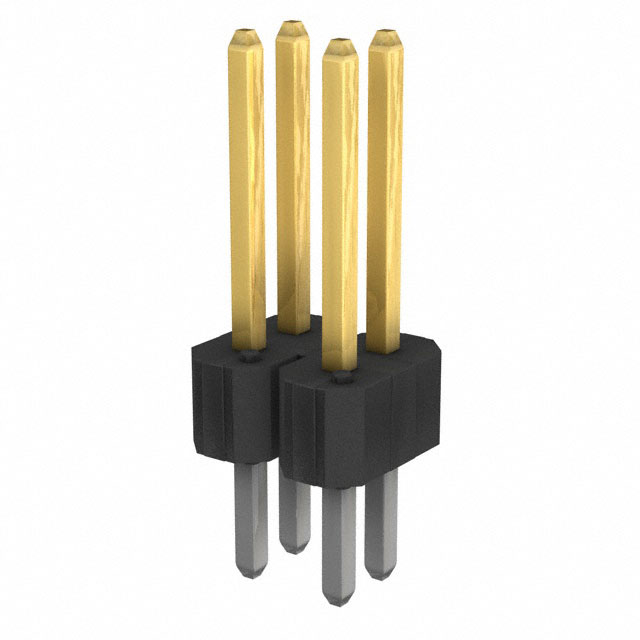

Amphenol FCI
| Part Number | 78233-204HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 473479 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BERGSTIK® II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.568" (14.43mm) | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
