Amphenol FCI
| Part Number | 78207-106HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|

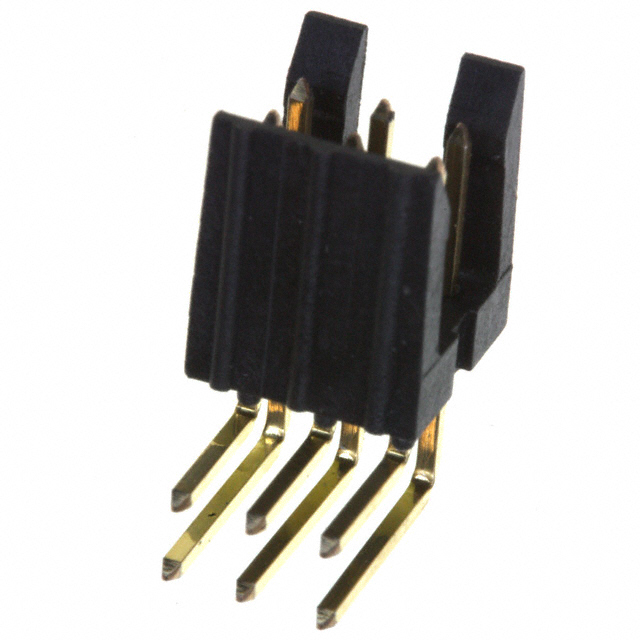

| Description | CONN HEADER 6POS DL R/A PCB AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93291 pcs | Data sheet | 78207-106HLF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 2 Wall |
| Series | Mini-PV™, Basics+ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 609-2436 78207106HLF |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.303" (7.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
