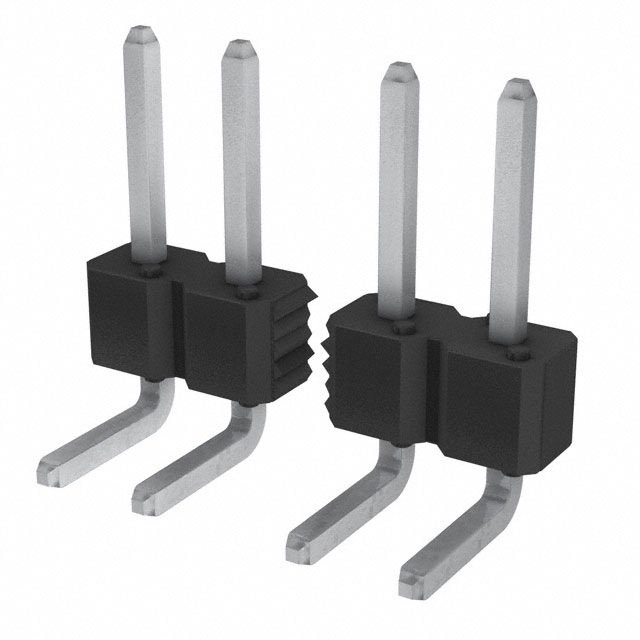

Amphenol FCI
| Part Number | 77315-401-36 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER .100 1ROW R/A 36POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3035 pcs | Data sheet | 77315-401-36.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BERGSTIK® | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | - | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.094" (2.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.101" (2.57mm) |
| Contact Length - Mating | 0.225" (5.72mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header, Breakaway |
| Applications | - |
