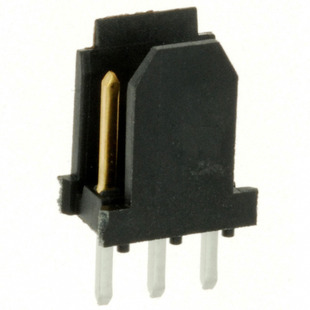

Amphenol FCI
| Part Number | 76384-303LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 3POS .100" STR GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 143156 pcs | Data sheet | 76384-303LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 2 Wall |
| Series | Dubox™ | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.411" (10.44mm) | Other Names | 609-1305 76384303LF |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.197" (5.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
