76383-307LF

Amphenol FCI

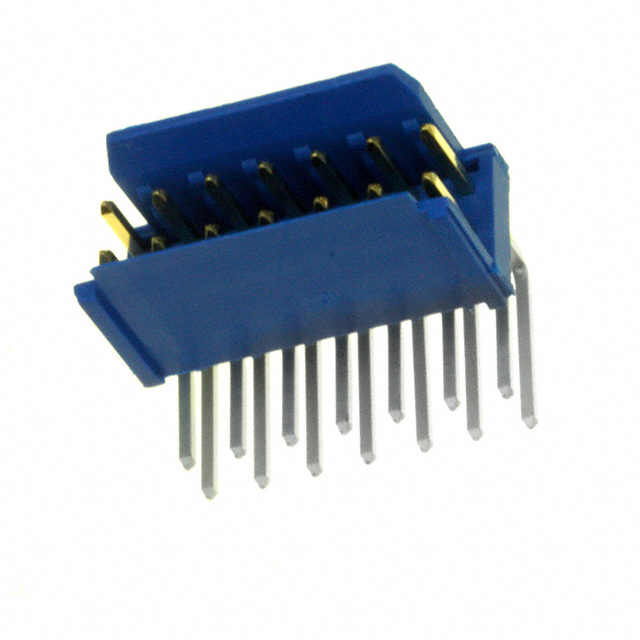

Image may be representation. See specifications for product details.

Product Overview

Part Number:	76383-307LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN HEADER 14PS.100 DL R/A GOLD
Datasheets:	76383-307LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32155 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32155 pcs

Reference Price (In US Dollars)

1 pcs: $0.965

29 pcs: $0.823

116 pcs: $0.751

522 pcs: $0.626

1015 pcs: $0.536

5017 pcs: $0.476

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.965

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 76383-307LF

Part Number	76383-307LF	Manufacturer	Amphenol FCI
Description	CONN HEADER 14PS.100 DL R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32155 pcs	Data sheet	76383-307LF.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Dubox™	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	609-1369 76383307LF
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.307" (7.80mm)
Insulation Color	Blue	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.154" (3.91mm)
Contact Length - Mating	0.197" (5.00mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold, GXT™	Connector Type	Header
Applications	-
