75869-102LF

Amphenol FCI

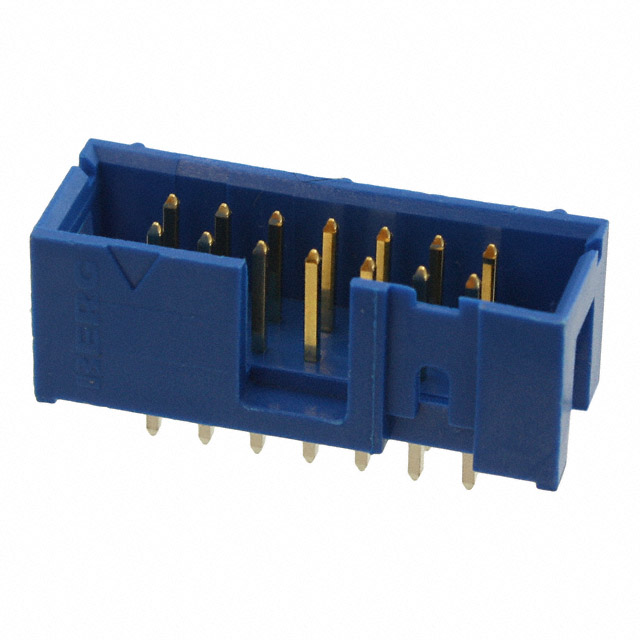

Image may be representation. See specifications for product details.

Product Overview

Part Number:	75869-102LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN HEADER 14POS DUAL VERT PCB
Datasheets:	75869-102LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98737 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 98737 pcs

Reference Price (In US Dollars)

1 pcs: $0.361

23 pcs: $0.318

115 pcs: $0.275

506 pcs: $0.225

1012 pcs: $0.20

5014 pcs: $0.175

10005 pcs: $0.166

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.361

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 75869-102LF

Part Number	75869-102LF	Manufacturer	Amphenol FCI
Description	CONN HEADER 14POS DUAL VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98737 pcs	Data sheet	75869-102LF.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Quickie™	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	609-4503 75869-102LF-ND 75869102LF
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Glass Filled	Insulation Height	0.377" (9.57mm)
Insulation Color	Blue	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.236" (6.00mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold, GXT™	Connector Type	Header
Applications	-
