Amphenol FCI

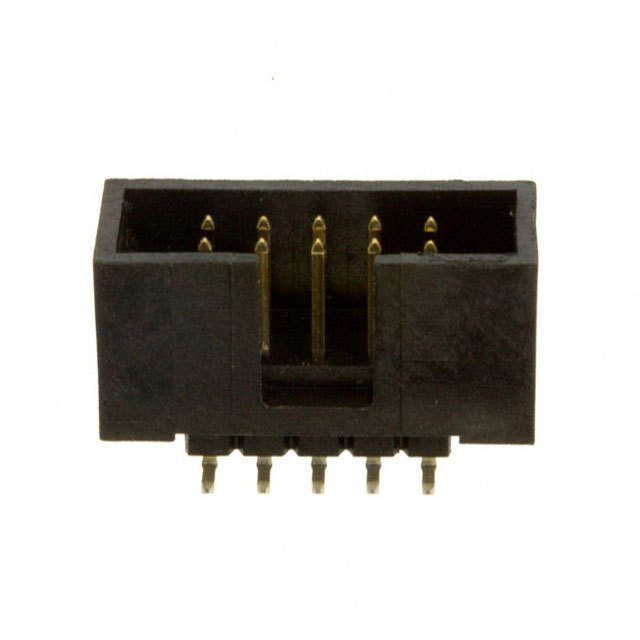

| Part Number | 72454-010LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 10POS SMD VERT 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32286 pcs | Data sheet | 72454-010LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Quickie™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 609-3075 72454-010LF-ND 72454010LF |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.365" (9.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
