Amphenol FCI
| Part Number | 71991-318LF | Manufacturer | Amphenol FCI |
|---|---|---|---|

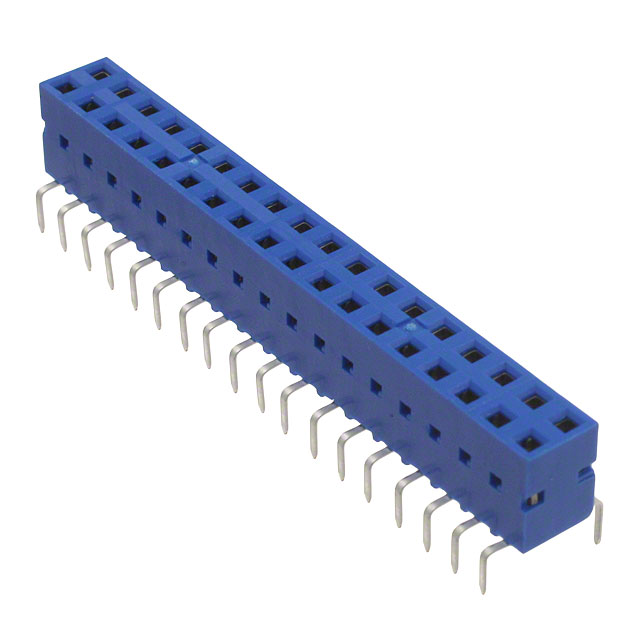

| Description | CONN RCPT 36POS .100 DL STR PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29727 pcs | Data sheet | 71991-318LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Dubox™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 609-3008 609-3008-ND 609-4502 71991318LF |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.04mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.275" (6.99mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 36 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
