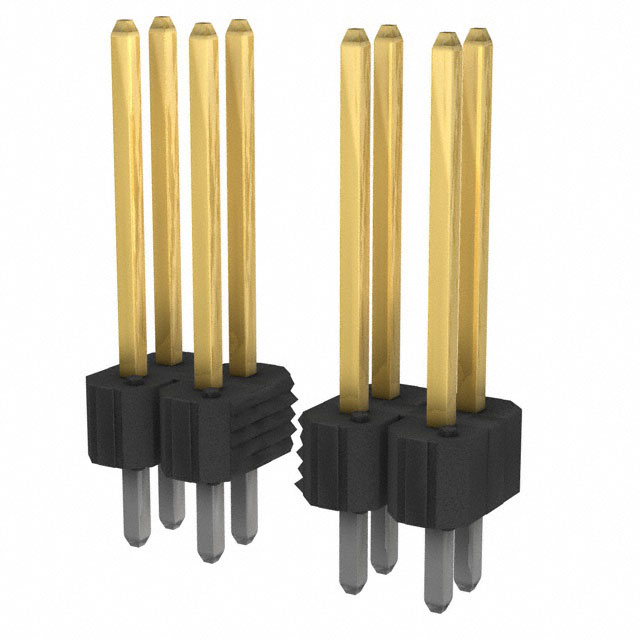

Amphenol FCI
| Part Number | 68464-110HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK II .100" DR STRAIGHT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 234549 pcs | Data sheet | 68464-110HLF.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | BERGSTIK® II |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.120" (3.05mm) | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 10 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 11 Weeks |
| Manufacturer Part Number | 68464-110HLF | Length - Post (Mating) | - |
| Insulation Material | - | Insulation Height | 0.650" (16.51mm) |
| Features | - | Expanded Description | 10 Positions Header Connector 0.100" (2.54mm) Through Hole Gold or Gold, GXT™ |
| Description | BERGSTIK II .100" DR STRAIGHT | Current Rating | - |
| Current - Max/Contact | - | Contact Length - Post | 0.430" (10.92mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Gold or Gold, GXT™ | Contact Finish - Post | 30µin (0.76µm) |
| Contact Finish - Mating | 0.100" (2.54mm) | Connector Type | Header |
| Actual Diameter | Black |
