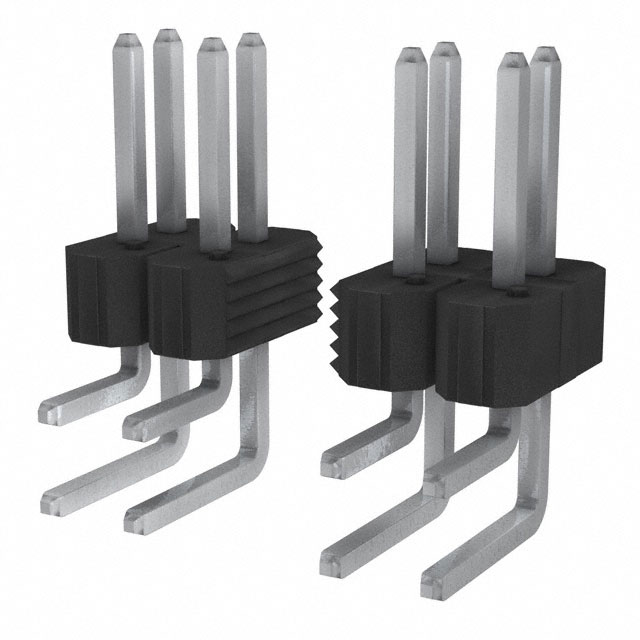

Amphenol FCI
| Part Number | 68405-472 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK II DR R/A WIDE BODY | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 97855 pcs | Data sheet | 68405-472.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | BERGSTIK® II |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.095" (2.41mm) | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 72 |
| Number of Contacts | - | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | 68405-472 | Length - Post (Mating) | - |
| Insulation Material | - | Insulation Height | - |
| Features | - | Expanded Description | 72 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Description | BERGSTIK II DR R/A WIDE BODY | Current Rating | - |
| Current - Max/Contact | - | Contact Length - Post | 0.230" (5.84mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Tin | Contact Finish - Post | 100µin (2.54µm) |
| Contact Finish - Mating | 0.190" (4.83mm) | Connector Type | Header |
| Actual Diameter | Black |
