Amphenol FCI
| Part Number | 67999-132HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3135 pcs | Data sheet | 67999-132HLF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BERGSTIK® II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.548" (13.92mm) | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |

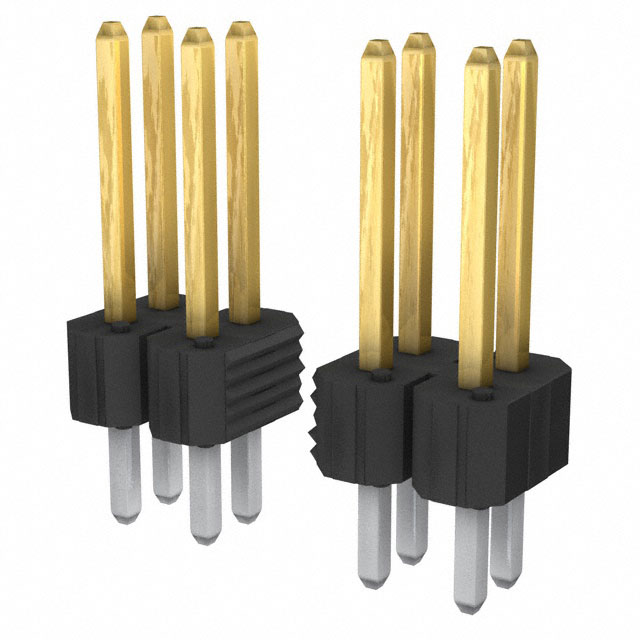

| Detailed Description | Connector Header Through Hole 32 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
