Amphenol FCI

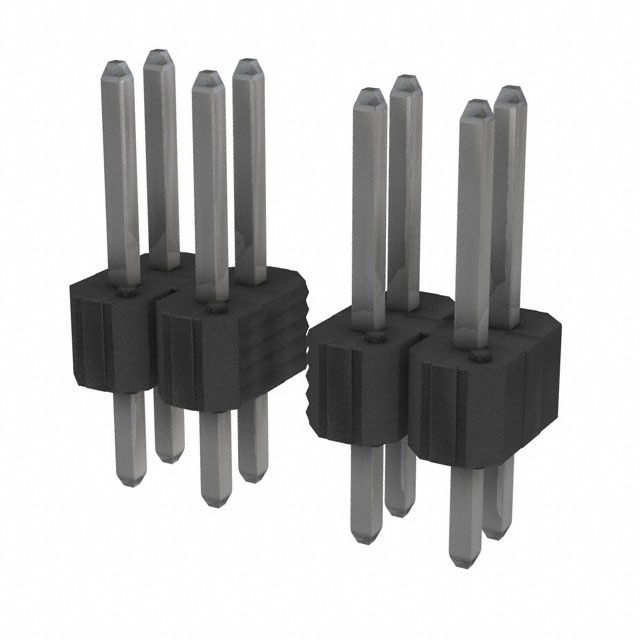

| Part Number | 67997-412HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 12POS .100 STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184509 pcs | Data sheet | 67997-412HLF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BERGSTIK® II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.450" (11.43mm) | Other Names | 609-3244 67997412HLF |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 12 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
