Amphenol FCI

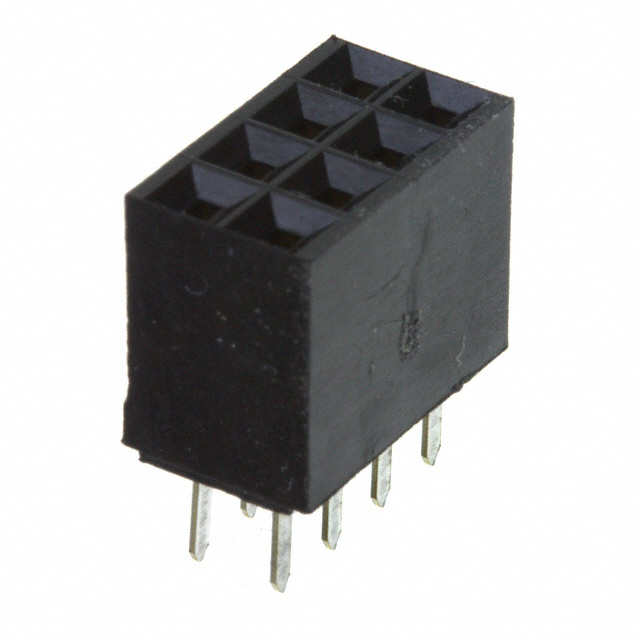

| Part Number | 66953-004LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 8POS .100 DUAL STR PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48461 pcs | Data sheet | 66953-004LF.pdf |
| Voltage Rating | 1250V | Termination | Solder |
| Style | Board to Board | Series | Dubox™, BergCon® PV™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 609-2268 66953004LF |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.325" (8.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
