Amphenol FCI

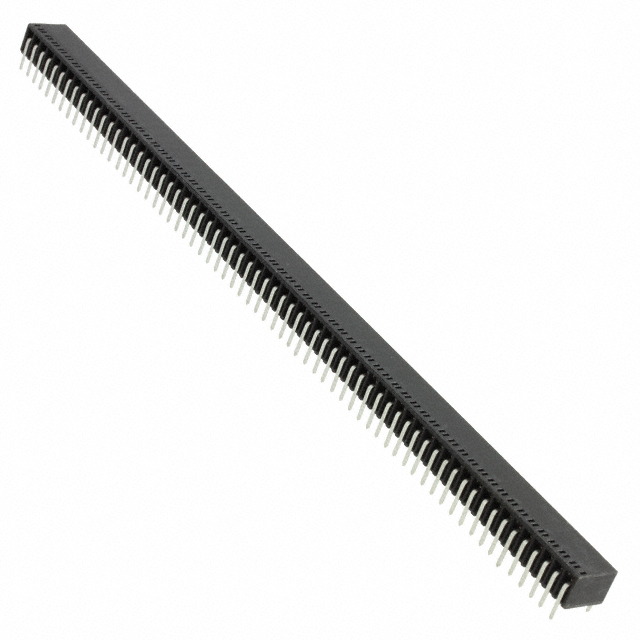

| Part Number | 66925-565LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 130POS T/H R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7299 pcs | Data sheet | 66925-565LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | - | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 609-4812 66925-565LF-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 130 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.240" (6.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Insulation Plug | Fastening Type | Push-Pull |
| Detailed Description | 130 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
