Amphenol FCI

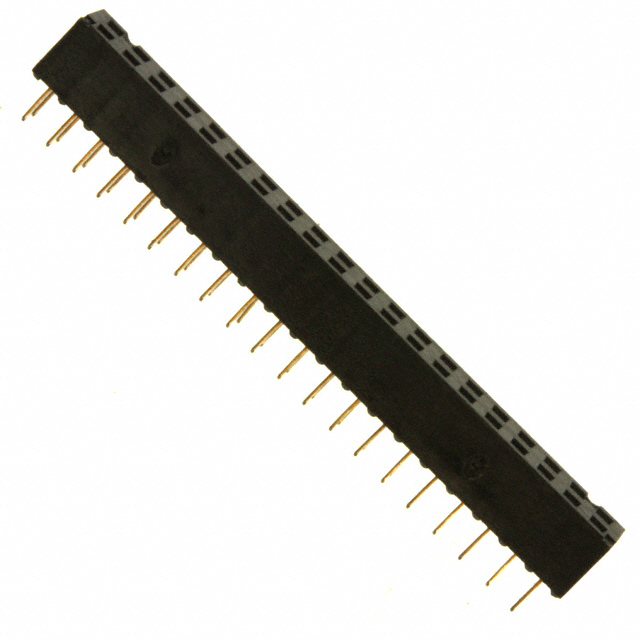

| Part Number | 63453-140LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RECEPT 40POS 2MM STR DL PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17528 pcs | Data sheet | 63453-140LF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 609-2679 63453140LF |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.098" (2.50mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Medical |
