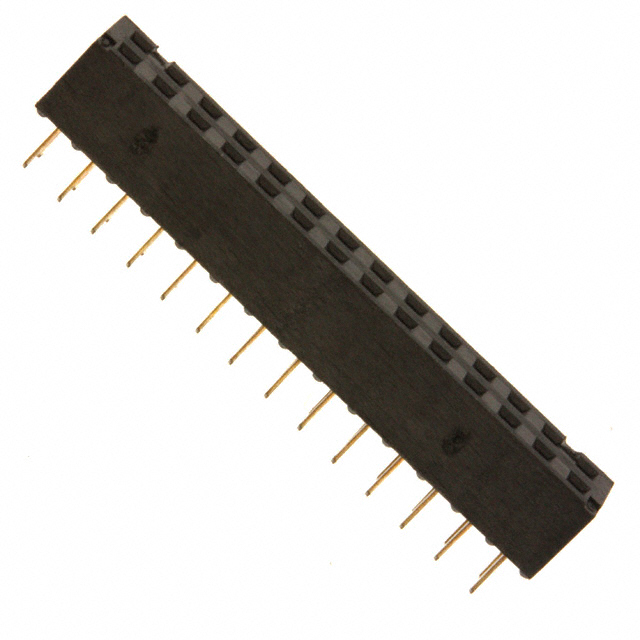

Amphenol FCI
| Part Number | 63453-128LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RECEPT 28POS 2MM STR DL PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4638 pcs | Data sheet | 63453-128LF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 609-2666 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 28 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 28 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.098" (2.50mm) | Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Medical |
