Amphenol FCI

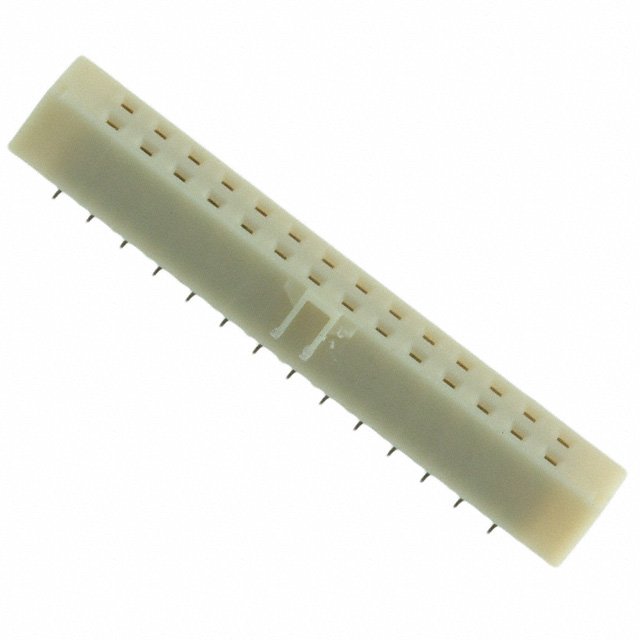

| Part Number | 63440-001 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 32POS VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6346 pcs | Data sheet | 63440-001.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 609-4429 63440-001-ND 63440-1 63440-1-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | 28 | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | 32 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.047" (1.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
