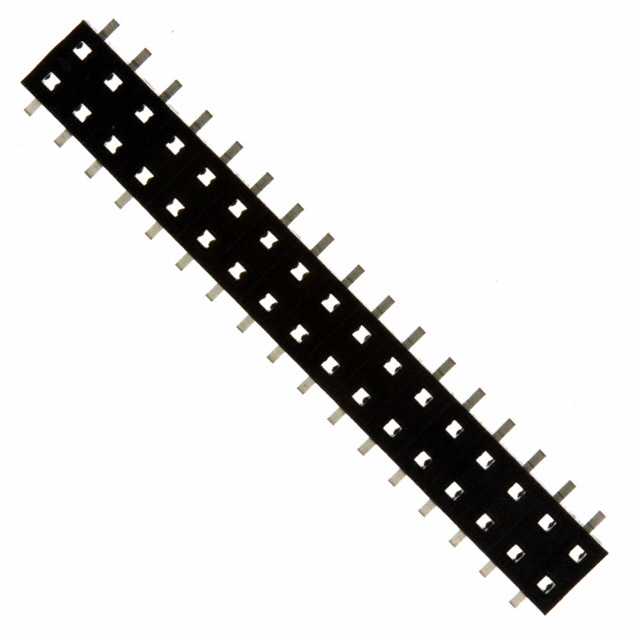

Amphenol FCI
| Part Number | 55510-134LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RECEPT 34POS 2MM STR DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22625 pcs | Data sheet | 55510-134LF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 55510134LF 609-2693 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 34 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 34 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Medical |
