54772-101-22LF

Amphenol FCI

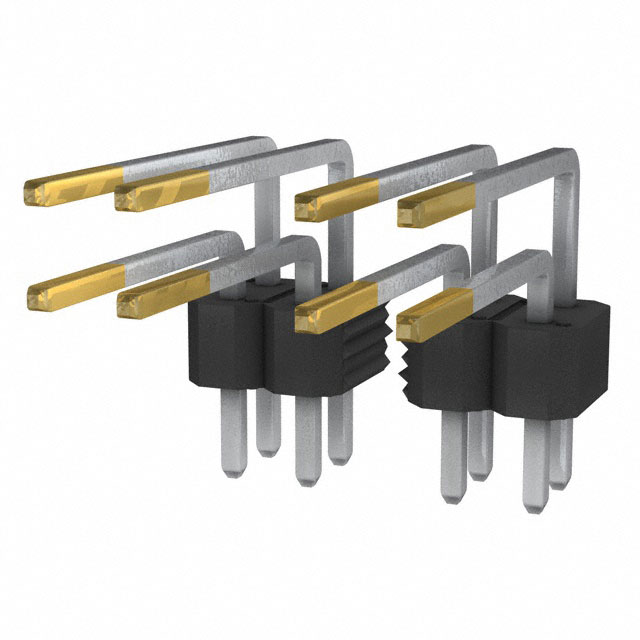

Image may be representation. See specifications for product details.

Product Overview

Part Number:	54772-101-22LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	HEADER BERGSTIK R/A
Datasheets:	54772-101-22LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	91191 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 91191 pcs

Reference Price (In US Dollars)

500 pcs: $0.352

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.352

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 54772-101-22LF

Part Number	54772-101-22LF	Manufacturer	Amphenol FCI
Description	HEADER BERGSTIK R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	91191 pcs	Data sheet	54772-101-22LF.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	BERGSTIK®	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Operating Temperature	-
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	22	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic
Insulation Height	0.100" (2.54mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold, GXT™
Connector Type	Header	Applications	-
