Amphenol FCI
| Part Number | 20021311-00020T4LF | Manufacturer | Amphenol FCI |
|---|---|---|---|

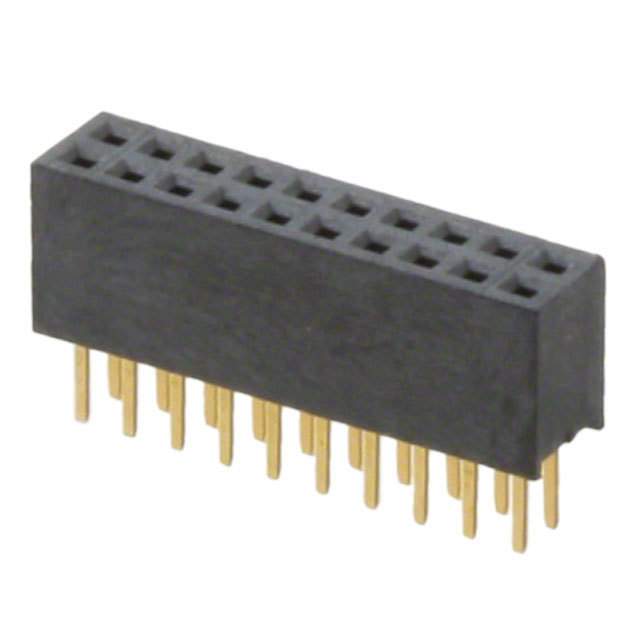

| Description | CONN RECEPT 20POS DUAL VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43982 pcs | Data sheet | 1.20021311-00020T4LF.pdf2.20021311-00020T4LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Minitek 127® 20021311 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 10122289-320000TLF 2002131100020T4LF 609-3759 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.173" (4.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Telecommunications |
