Amphenol FCI
| Part Number | 20020010-H081B01LF | Manufacturer | Amphenol FCI |
|---|---|---|---|

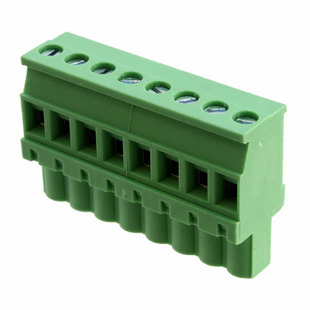

| Description | TERM BLOCK PLUG 8POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31423 pcs | Data sheet | 20020010-H081B01LF.pdf |
| Wire Strip Length | 0.4 Nm (3.5 Lb-In) | Wire Gauge or Range - mm² | 12-24 AWG |
| Wire Gauge or Range - Coaxial | 1-2.5mm² | Voltage - UL | 12A |
| Voltage - IEC | - | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Type Attributes | - | Type | Plug, Female Sockets |
| Torque - Screw | Tin | Termination Style | Screw - Rising Cage Clamp |
| Terminal - Width | 1 | Series | 02-508 |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 20020010H081B01LF 609-4207 |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 8 | Number of Conductors | 0.200" (5.08mm) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Part Number | 20020010-H081B01LF |
| Header Orientation | 8 | Front Panel Wire Connection | - |
| Filter Type | 300V | Features | Retention Latches (Non-Wire Side) |
| Expanded Description | 8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 270° Free Hanging (In-Line) | Description | TERM BLOCK PLUG 8POS 5.08MM |
| Current - UL | - | Contact Tail Length | 6-7mm |
| Contact Mating Finish | 270° | Contact Finish - Mating | 1.024" (26.01mm) |
| Color | Green | Cable Opening | Thermoplastic Resin |
| Bundle Center to Mounting Center | M3 |
