Amphenol FCI

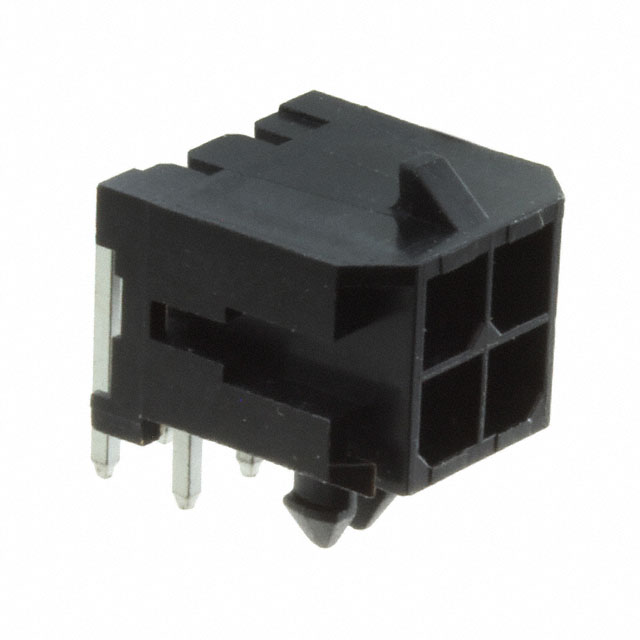

| Part Number | 10132449-0421GLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR 3.0 HCC HDR | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 223311 pcs | Data sheet | 1.10132449-0421GLF.pdf2.10132449-0421GLF.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Minitek Pwr® 3.0 | Row Spacing - Mating | 0.118" (3.00mm) |
| RoHS Status | RoHS Compliant | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 10132449-0421GLF-ND 609-5286 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.343" (8.71mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | General Purpose, Medical, Military, Telecommunications |
