Amphenol FCI

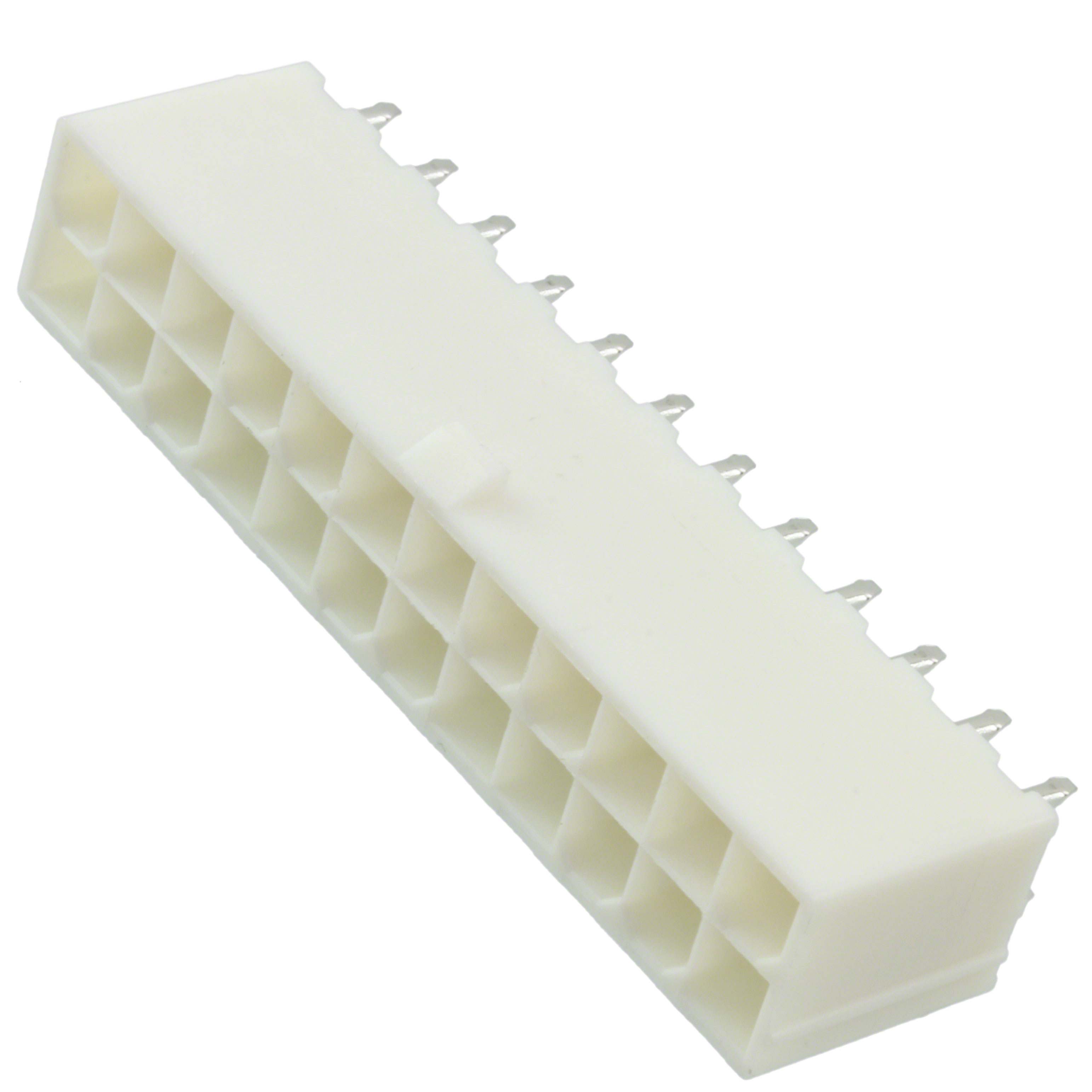

| Part Number | 10127820-2422LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR4.2 VT HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71568 pcs | Data sheet | 1.10127820-2422LF.pdf2.10127820-2422LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Minitek Pwr® 4.2 | Row Spacing - Mating | 0.165" (4.20mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 10127820-2422LF-ND 609-4879 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 24 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 24 position 0.165" (4.20mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
