Amphenol FCI

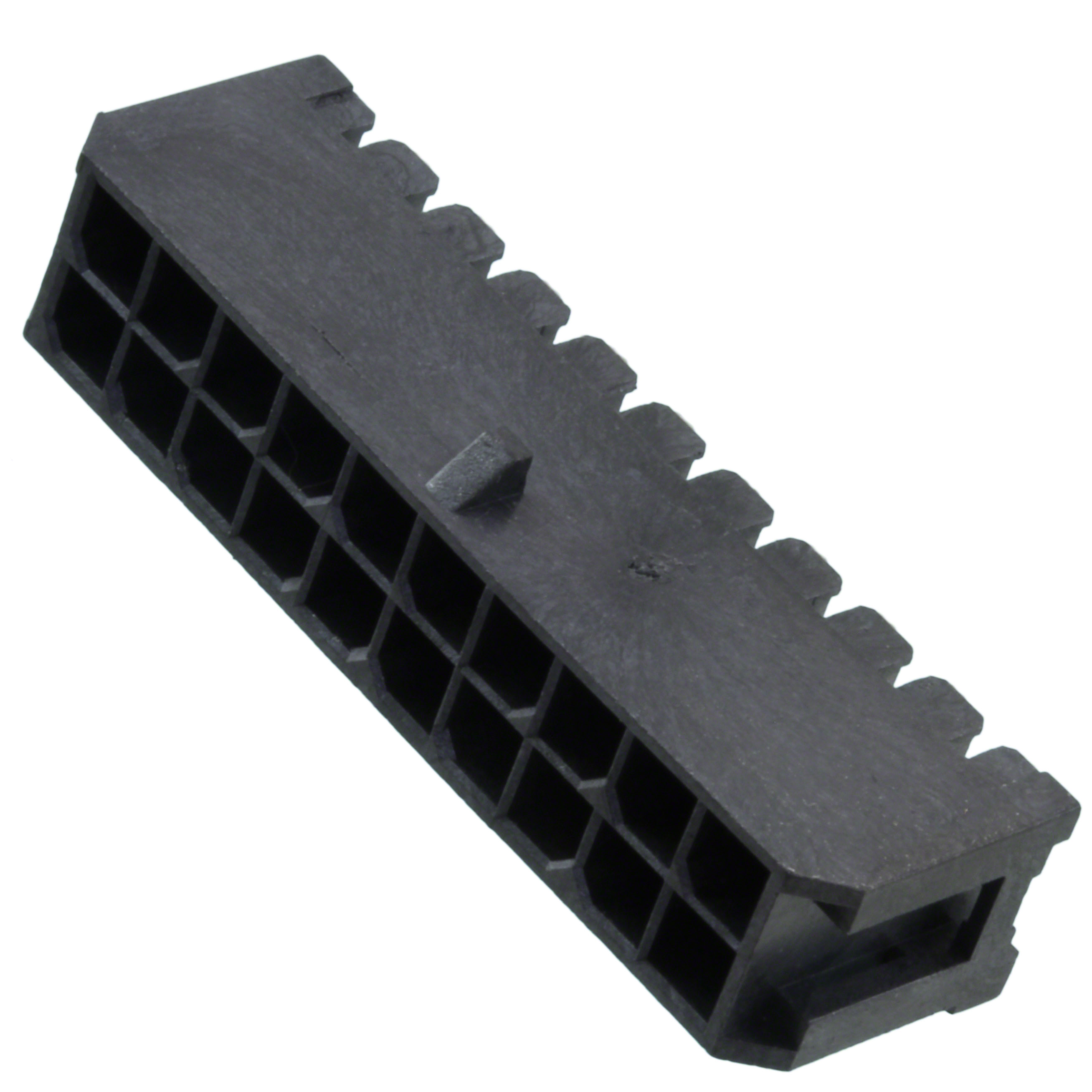

| Part Number | 10127720-201LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR3.0 RA HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90466 pcs | Data sheet | 10127720-201LF.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Minitek Pwr® 3.0 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 10127720-201LF-ND 609-4855 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.285" (7.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.118" (3.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Plug |
| Applications | - |
