Amphenol FCI

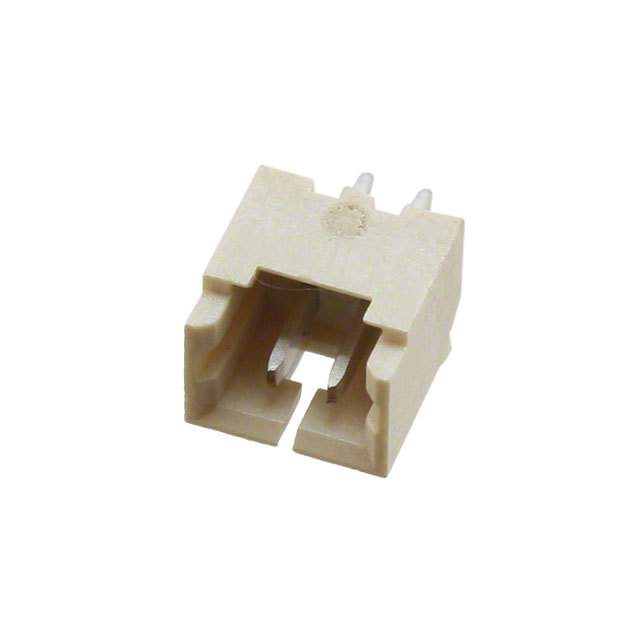

| Part Number | 10114829-10102LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN WTB 1.25MM 2POS VERT TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 804857 pcs | Data sheet | 1.10114829-10102LF.pdf2.10114829-10102LF.pdf |
| Voltage Rating | 125V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 10114829 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 1011482910102LF 609-4383-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 2 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
