10080054-524LF

Amphenol FCI

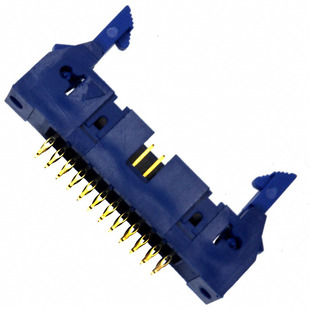

Image may be representation. See specifications for product details.

Product Overview

Part Number:	10080054-524LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	CONN HEADER 24POS DUAL VERT PCB
Datasheets:	10080054-524LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28594 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28594 pcs

Reference Price (In US Dollars)

360 pcs: $1.035

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.035

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 10080054-524LF

Part Number	10080054-524LF	Manufacturer	Amphenol FCI
Description	CONN HEADER 24POS DUAL VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28594 pcs	Data sheet	10080054-524LF.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Quickie™	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.629" (15.97mm)	Other Names	10080054-524LF-ND 609-3095
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.640" (16.26mm)
Insulation Color	Blue	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole 24 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze Alloy	Contact Length - Post	0.160" (4.06mm)
Contact Length - Mating	0.234" (5.94mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
