Amphenol FCI
| Part Number | 10073456-014LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55548 pcs | Data sheet | 10073456-014LF.pdf |
| Voltage Rating | - | Termination | Press-Fit, Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Quickie™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | 0.510" (12.95mm) | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |

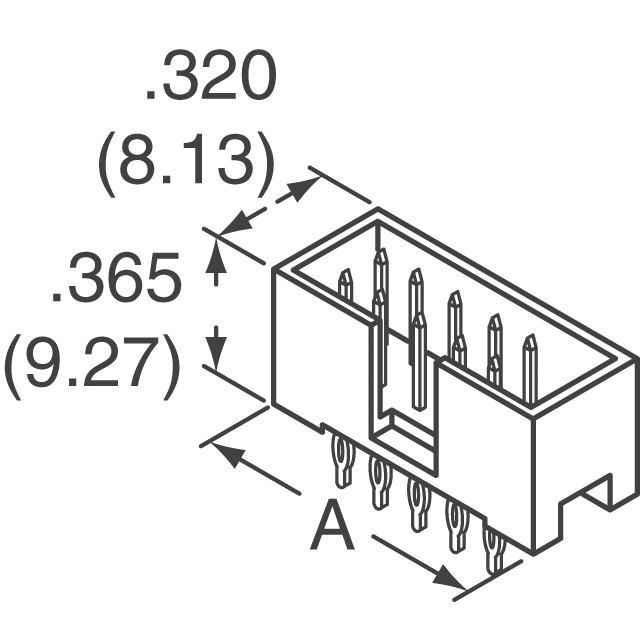

| Insulation Height | 0.365" (9.27mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.160" (4.06mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
