Amphenol FCI

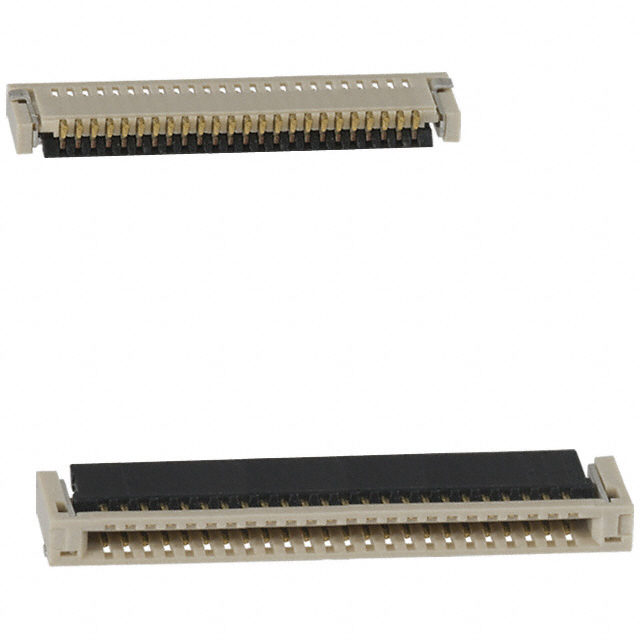

| Part Number | 10051922-2410ELF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FPC BOTTOM 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 236532 pcs | Data sheet | 10051922-2410ELF.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | VLL | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 100519222410ELF 609-1241-2 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 24 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | Natural | Height Above Board | 0.051" (1.30mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 24 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 2.00µin (0.051µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled | Actuator Color | Black |
