Amphenol FCI
| Part Number | 10013057-351200ELF | Manufacturer | Amphenol FCI |
|---|---|---|---|

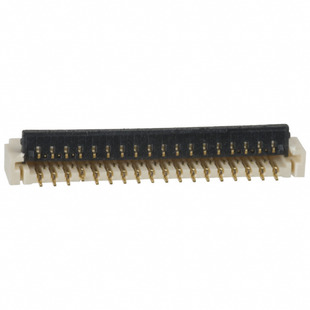

| Description | CONN FFC BOTTOM 35POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3586 pcs | Data sheet | 10013057-351200ELF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Series | SFYL | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | 609-1220-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 35 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Glass Filled | Housing Color | White |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FFC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 35 Position FFC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Notched | Actuator Material | Plastic |
| Actuator Color | Black |
