506WLSM0R47KT815T

American Technical Ceramics

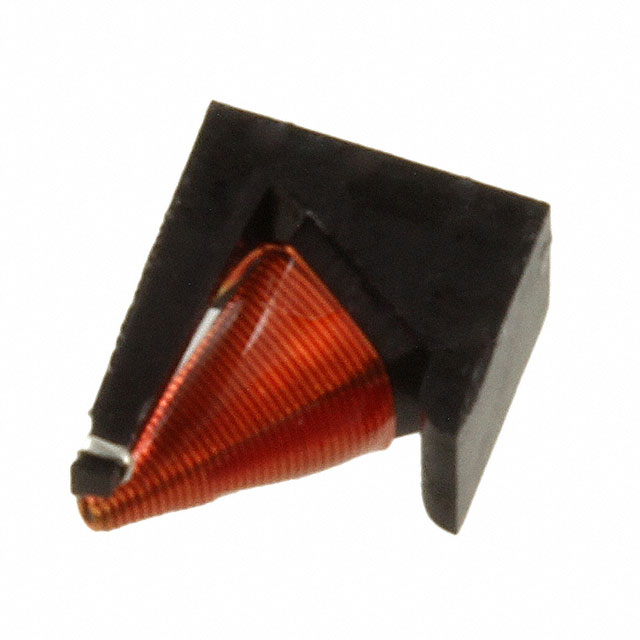

Image may be representation. See specifications for product details.

Product Overview

Part Number:	506WLSM0R47KT815T
Manufacturer/Brand:	American Technical Ceramics
Product description	FIXED IND 470NH 815MA 190 MOHM
Datasheets:	506WLSM0R47KT815T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5313 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5313 pcs

Reference Price (In US Dollars)

100 pcs: $7.208

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.208

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 506WLSM0R47KT815T

Part Number	506WLSM0R47KT815T	Manufacturer	American Technical Ceramics
Description	FIXED IND 470NH 815MA 190 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5313 pcs	Data sheet	506WLSM0R47KT815T.pdf
Type	Wirewound	Tolerance	±10%
Supplier Device Package	-	Size / Dimension	0.127" L x 0.080" W (3.23mm x 2.03mm)
Shielding	Unshielded	Series	506WLS
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	1284-1315-2 ATC506WLSM0R47KT815T	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1MHz
Inductance	470nH	Height - Seated (Max)	0.105" (2.67mm)
Frequency - Self Resonant	-	Detailed Description	470nH Unshielded Wirewound Inductor 815mA 190 mOhm Nonstandard
DC Resistance (DCR)	190 mOhm	Current Rating	815mA
Current - Saturation	-
