EC2630QI

Altera (Intel® Programmable Solutions Group)

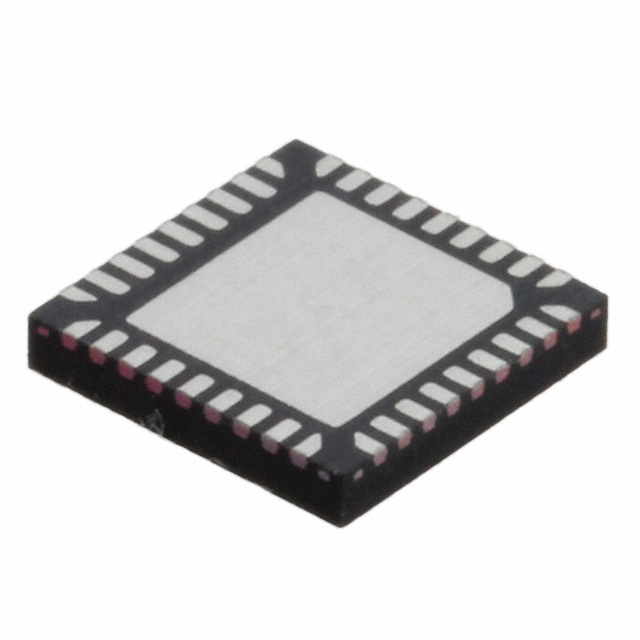

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EC2630QI
Manufacturer/Brand:	Altera (Intel® Programmable Solutions Group)
Product description	IC REG SWITCHD CAP VIN/2 36QFN
Datasheets:	EC2630QI.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26293 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 26293 pcs

Reference Price (In US Dollars)

1000 pcs: $1.47

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.47

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EC2630QI

Part Number	EC2630QI	Manufacturer	Altera (Intel® Programmable Solutions Group)
Description	IC REG SWITCHD CAP VIN/2 36QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26293 pcs	Data sheet	EC2630QI.pdf
Voltage - Output (Min/Fixed)	Vin/2	Voltage - Output (Max)	-
Voltage - Input (Min)	8V	Voltage - Input (Max)	13.2V
Topology	Charge Pump	Synchronous Rectifier	Yes
Supplier Device Package	36-QFN (5x6)	Series	Enpirion®
Packaging	Tape & Reel (TR)	Package / Case	36-VFQFN Exposed Pad
Output Type	Fixed	Output Configuration	Positive
Other Names	544-2844-2	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Ratiometric
Frequency - Switching	115kHz	Detailed Description	Charge Pump Switching Regulator IC Positive Fixed Vin/2 1 Output 4.5A 36-VFQFN Exposed Pad
Current - Output	4.5A
