Altech Corporation
| Part Number | SH12-3,50 | Manufacturer | Altech Corporation |
|---|---|---|---|

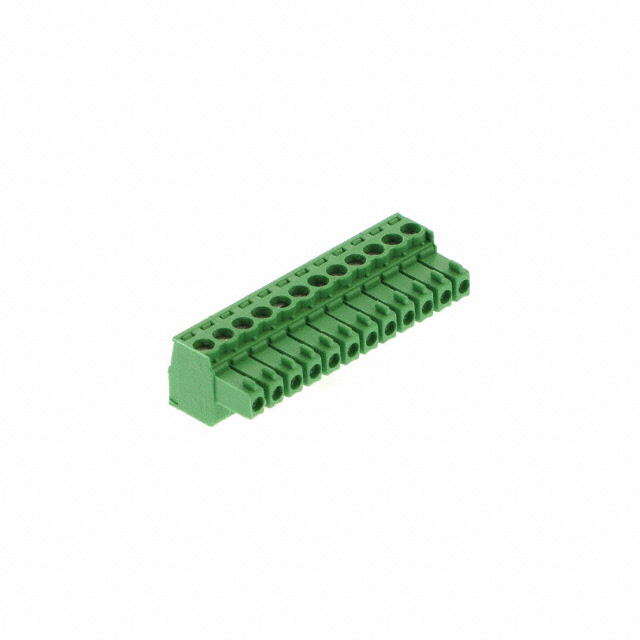

| Description | TERM BLOCK PLUG 12POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17089 pcs | Data sheet | SH12-3,50.pdf |
| Wire Strip Length | 8mm | Wire Gauge or Range - mm² | 0.25-1.5mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 160V | Type | Plug, Female Sockets |
| Torque - Screw | 0.25 Nm (2.2 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | - | Screw Size | M2 |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1920-1351 | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 11A |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Nickel | Contact Material | Copper Alloy |
| Color | Green |
