Altech Corporation

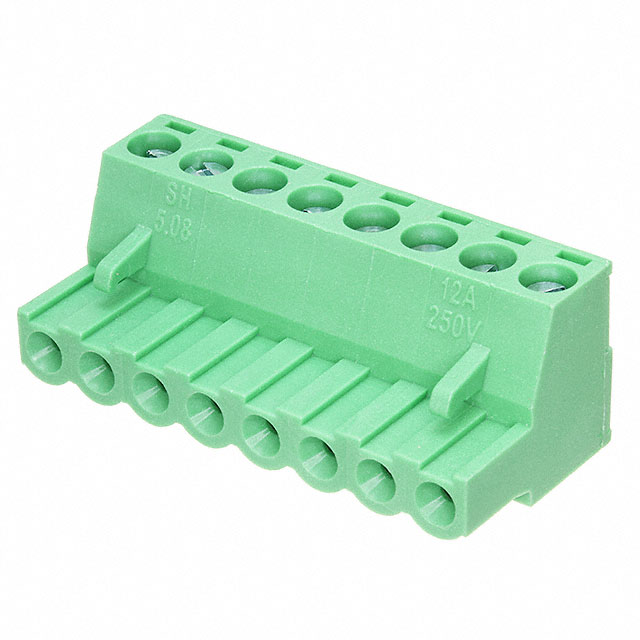

| Part Number | SH08-5,08 | Manufacturer | Altech Corporation |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20912 pcs | Data sheet | SH08-5,08.pdf |
| Wire Strip Length | 7.5mm | Wire Gauge or Range - mm² | 2.5mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 450V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | - | Screw Size | M3 |
| Positions Per Level | 8 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1920-1356 | Operating Temperature | - |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.610" (15.49mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) | Current - UL | 12A |
| Current - IEC | 16A | Contact Tail Length | - |
| Contact Mating Finish | Nickel | Contact Material | Brass |
| Color | Green |
