AOZ8030DIL

Alpha and Omega Semiconductor, Inc.

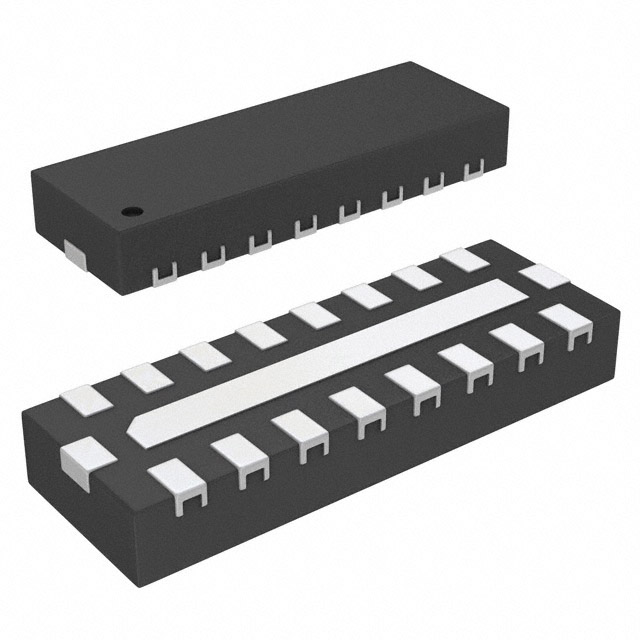

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AOZ8030DIL
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	FILTER RC(PI) 100 OHM/28PF SMD
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5380 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5380 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AOZ8030DIL

Part Number	AOZ8030DIL	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	FILTER RC(PI) 100 OHM/28PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5380 pcs	Data sheet
Voltage - Rated	5V	Values	R = 100 Ohms, C = 28pF
Type	Low Pass	Technology	RC (Pi)
Size / Dimension	0.138" L x 0.047" W (3.50mm x 1.20mm)	Series	-
Resistance - Channel (Ohms)	100	Packaging	Tape & Reel (TR)
Package / Case	16-UFDFN Exposed Pad	Operating Temperature	-40°C ~ 85°C
Number of Channels	8	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.024" (0.60mm)	Filter Order	2nd
ESD Protection	Yes	Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 28pF 20mA 16-UFDFN Exposed Pad
Current	20mA	Center / Cutoff Frequency	90MHz (Cutoff)
Attenuation Value	-35dB @ 800MHz ~ 2.2GHz	Applications	Data Lines for Mobile Devices
