Alpha and Omega Semiconductor, Inc.

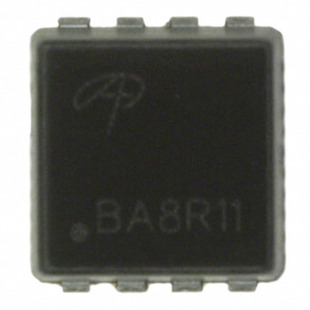

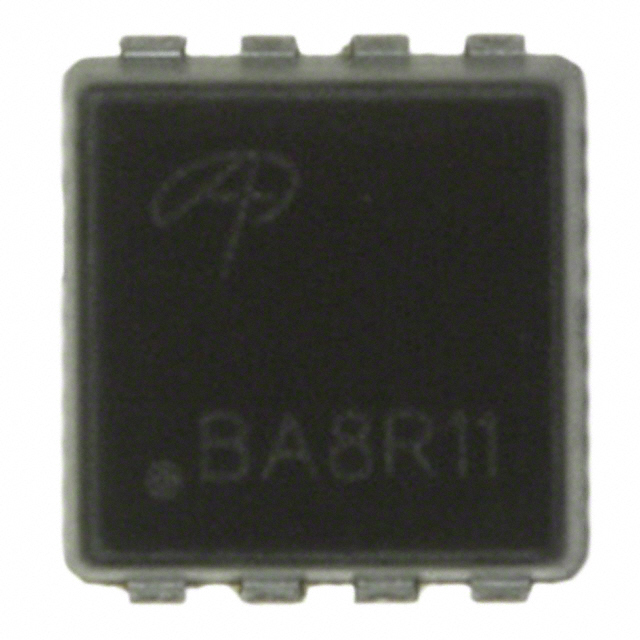

| Part Number | AONS21357 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET P-CH 30V 8DFN 5X6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 367885 pcs | Data sheet | AONS21357.pdf |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA | Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-DFN-EP (5x6) |
| Series | - | Rds On (Max) @ Id, Vgs | 7.8 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 5W (Ta), 48W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN | Other Names | 785-1793-2 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2830pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 70nC @ 10V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | P-Channel 30V 21A (Ta), 36A (Tc) 5W (Ta), 48W (Tc) Surface Mount 8-DFN-EP (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 36A (Tc) |
