AON2290

Alpha and Omega Semiconductor, Inc.

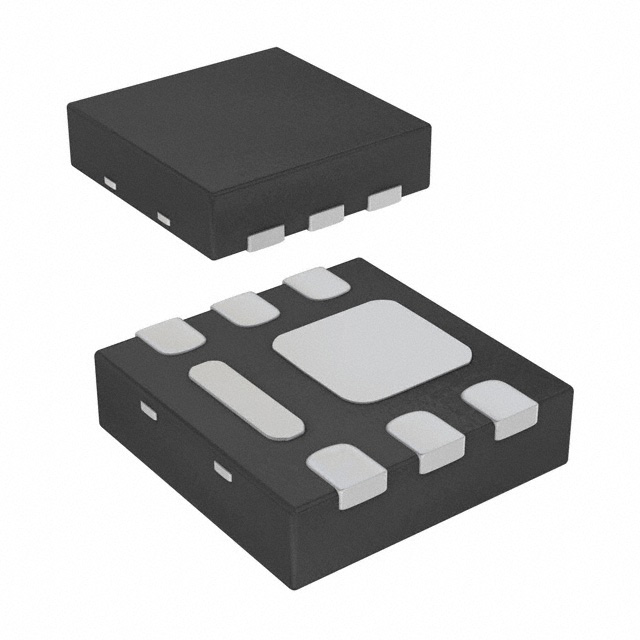

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AON2290
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	MOSFET N CH 100V 4.5A DFN 2X2B
Datasheets:	1.AON2290.pdf 2.AON2290.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	170853 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 170853 pcs

Reference Price (In US Dollars)

1 pcs: $0.224

10 pcs: $0.19

100 pcs: $0.142

500 pcs: $0.104

1000 pcs: $0.081

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.224

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AON2290

Part Number	AON2290	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	MOSFET N CH 100V 4.5A DFN 2X2B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	170853 pcs	Data sheet	1.AON2290.pdf 2.AON2290.pdf
Vgs(th) (Max) @ Id	2.8V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	6-DFN-EP (2x2)
Series	-	Rds On (Max) @ Id, Vgs	72 mOhm @ 4.5A, 10V
Power Dissipation (Max)	2.8W (Ta)	Packaging	Cut Tape (CT)
Package / Case	6-UDFN Exposed Pad	Other Names	785-1606-1
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	415pF @ 50V
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Drain to Source Voltage (Vdss)	100V	Detailed Description	N-Channel 100V 4.5A (Ta) 2.8W (Ta) Surface Mount 6-DFN-EP (2x2)
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
