AOC2421

Alpha and Omega Semiconductor, Inc.

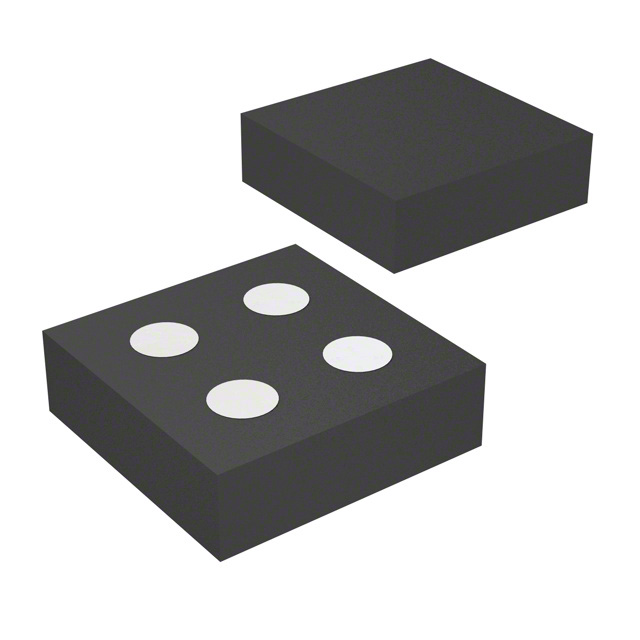

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AOC2421
Manufacturer/Brand:	Alpha and Omega Semiconductor, Inc.
Product description	MOSFET P-CH 8V 2.5A 4WLCSP
Datasheets:	1.AOC2421.pdf 2.AOC2421.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	423798 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 423798 pcs

Reference Price (In US Dollars)

5000 pcs: $0.076

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.076

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AOC2421

Part Number	AOC2421	Manufacturer	Alpha and Omega Semiconductor, Inc.
Description	MOSFET P-CH 8V 2.5A 4WLCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	423798 pcs	Data sheet	1.AOC2421.pdf 2.AOC2421.pdf
Vgs(th) (Max) @ Id	700mV @ 250µA	Vgs (Max)	±5V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	4-AlphaDFN (0.97x0.97)
Series	-	Rds On (Max) @ Id, Vgs	62 mOhm @ 1.5A, 2.5V
Power Dissipation (Max)	600mW (Ta)	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	26 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	752pF @ 4V	Gate Charge (Qg) (Max) @ Vgs	13nC @ 4.5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 2.5V	Drain to Source Voltage (Vdss)	8V
Detailed Description	P-Channel 8V 2.5A (Ta) 600mW (Ta) Surface Mount 4-AlphaDFN (0.97x0.97)	Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
