Alpha Wire

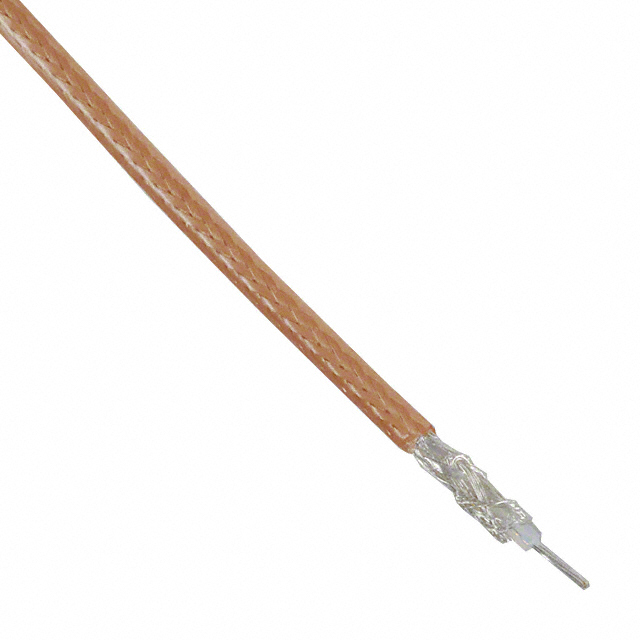

| Part Number | 9316 BR002 | Manufacturer | Alpha Wire |
|---|---|---|---|
| Description | CABLE COAXIAL RG316 25AWG 500' | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121 pcs | Data sheet | 9316 BR002.pdf |
| Wire Gauge | 25 AWG | VoP, Velocity of Propagation | 70 |
| Usage | - | Shield Type | Braid |
| Shield Material | Copper, Silver Coated | Shield Coverage | 93% |
| Series | - | Other Names | 9316 NC002 9316 SL002 9316-500 9316BR002-500 A315-500 A315-500-ND |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Length | 500.0' (152.40m) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Jacket Color | Brown |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) | Jacket (Insulation) Diameter | 0.098" (2.48mm) |
| Impedance | 50 Ohms | Features | - |
| Dielectric Material | Tetrafluoroethylene (TFE) | Dielectric Diameter | 0.060" (1.52mm) |
| Detailed Description | Coaxial Cable 25 AWG RG-316 500.0' (152.40m) 50 Ohms | Conductor Strand | 7 Strands / 0.0067" |
| Conductor Material | Steel, Copper Covered, Silver Coated | Cable Type | Coaxial |
| Cable Group | RG-316 |
