Alpha Wire
| Part Number | 9223 BK002 | Manufacturer | Alpha Wire |
|---|---|---|---|

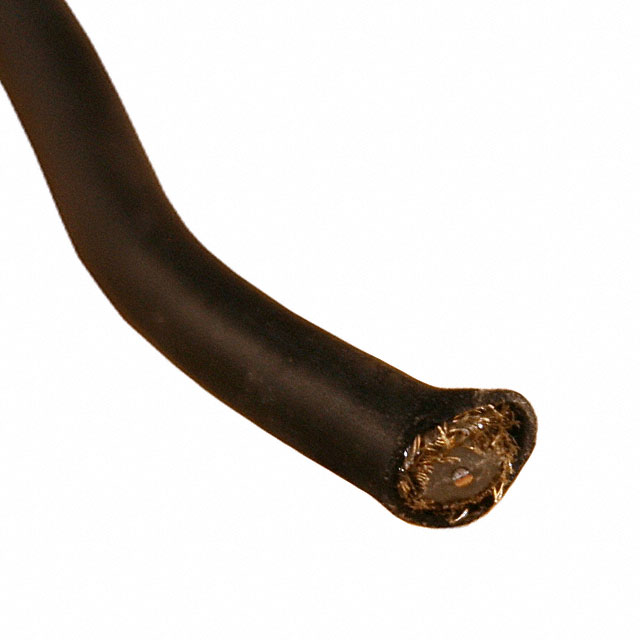

| Description | CABLE COAXIAL RG223 19AWG 500' | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64 pcs | Data sheet | 9223 BK002.pdf |
| Wire Gauge | 19 AWG (0.65mm²) | VoP, Velocity of Propagation | 66 |
| Usage | - | Shield Type | Double Braid |
| Shield Material | Copper, Silver Coated | Shield Coverage | 99% |
| Series | - | Other Names | 9223 SL002 9223-500 9223BK002-500 A309-500 A309-500-ND |
| Operating Temperature | -40°C ~ 90°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length | 500.0' (152.40m) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Jacket Color | Black |
| Jacket (Insulation) Material | Non Contaminating Poly-Vinyl Chloride (PVC) | Jacket (Insulation) Diameter | 0.212" (5.38mm) |
| Impedance | 50 Ohms | Features | - |
| Dielectric Material | Solid Polyethylene (PE) | Dielectric Diameter | 0.116" (2.95mm) |
| Detailed Description | Coaxial Cable 19 AWG (0.65mm²) RG-223 500.0' (152.40m) 50 Ohms | Conductor Strand | Solid |
| Conductor Material | Copper, Silver Coated | Cable Type | Coaxial |
| Cable Group | RG-223 |
