Alpha Wire
| Part Number | 9214 BK002 | Manufacturer | Alpha Wire |
|---|---|---|---|

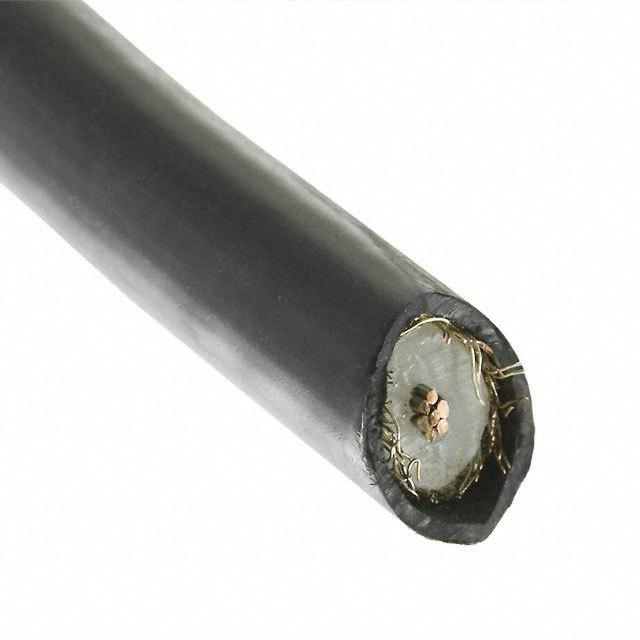

| Description | CABLE COAXIAL RG214 13AWG 500' | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6742 pcs | Data sheet | 9214 BK002.pdf |
| Wire Gauge | 13 AWG (1.83mm²) | VoP, Velocity of Propagation | 66 |
| Usage | - | Shield Type | Double Braid |
| Shield Material | Copper, Silver Coated | Shield Coverage | 99% |
| Series | - | Other Names | 9214 SL002 9214-500 A308-500 |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length | 500.0' (152.40m) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Jacket Color | Black | Jacket (Insulation) Material | Non Contaminating Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.425" (10.80mm) | Impedance | 50 Ohms |
| Features | - | Dielectric Material | Solid Polyethylene (PE) |
| Dielectric Diameter | 0.285" (7.24mm) | Detailed Description | Coaxial Cable 13 AWG (1.83mm²) RG-214 500.0' (152.40m) 50 Ohms |
| Conductor Strand | 7 Strands / 0.0296" | Conductor Material | Copper, Silver Coated |
| Cable Type | Coaxial | Cable Group | RG-214 |
